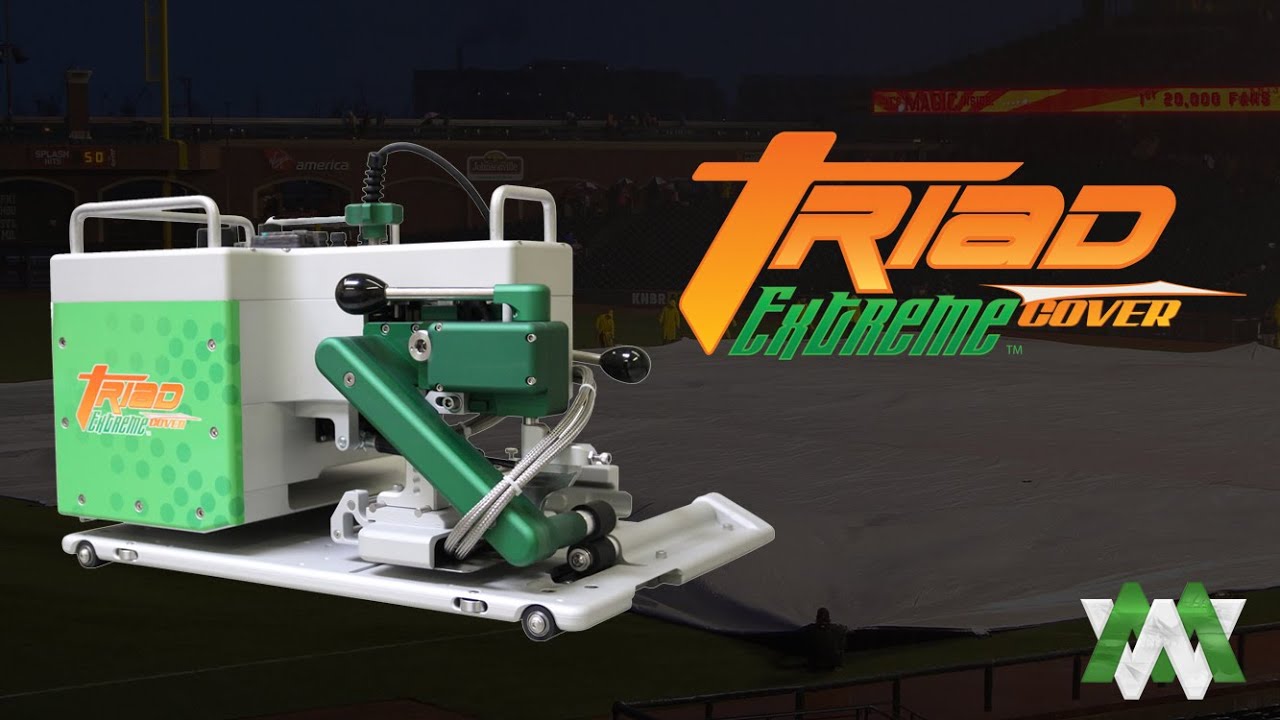

Triad Extreme Cover

Small Portable Welder for your Cover and Tarp Production

Comes fully assembled and ready to weld stationary or traveling on table top track. The Triad Extreme Cover is ready to meet any cover or tarp production demands.

Best For:

  • Curtains - Truck Side
  • Geomembranes/Liners
  • Tarpaulins/Covers

Triad seam types

Features & Benefits

  • Multiple seam configurations available for multiple finishing demands
  • Excellent visibility of the welding area
  • Swing out wedge provides for easy cleaning
  • Stationary or automatic travel on track for hands free operation
  • Available in either 110V or 230V to suite your facility requirements
Triad_Extreme_Cover

Power Requirements

  • 120 Volts - Single Phase - 5 Amp.
  • 230 Volts - Single Phase - 2.65 Amp.

Power Consumption

  • Approx. 0.6kW

Maximum Temperature

  • 525˚C (977˚F)

Dimensions

  • Width: 0.254m (1o")
  • Length: 0.508m (20")
  • Height: 0.305m (12")

Weight

  • 23kg (50lb)

Seam Width

  • 10-50mm (0.5-2")

Welding Cycle

  • Approx. 10m/min.*



* Depending on the application, the seam width and the type of material used
